MAGNUM L/ N/ H

Product code 8108.010; Launched in the year 2000, the Magnum pump has proven to be the ideal pump for heavy duty drainage applications in all kinds of segments. Be it Construction, Mining or Industrial applications, the robust and reliable design combined with the ease-of-maintenance make it the pump of choice for hundreds of customers around the world. The Magnum pump is available in three configurations;
Magnum L (Low head)
Magnum N (Normal head)
Magnum H (High head)

Technical specifications Pump type: Electrical submersible Three-phase
Classification: IP 68
Max submersion: 20 meters
Cable: 20 meters, SUBCAB
Discharge connection: 6″, 8″, 10″ – hose, ISO-G or NPT
Limitations: pH 5-8
Max liquid temp: 40°C

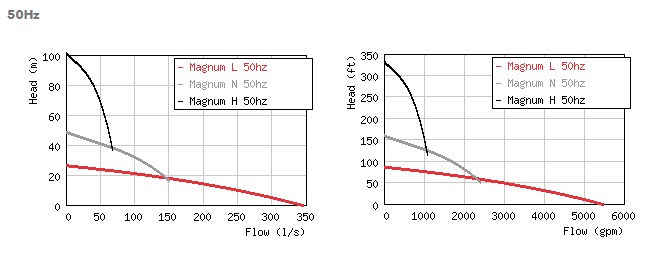

50 Hz N H L
Discharge connection 8″ 6″ 10″
Rated power P2 [kW] 57 57 57
Max. power consumption P1 [kW] 62 64 62
Shaft speed [r.p.m.] 1475 2950 1475
Rated current at 400V 107 A 99 A 107 A
Rated current at 500V 85 A 79 A 85 A
Solids passage [mm] 12 12 12
Height [mm] 1475 1475 1475
Diameter [mm] 750 750 750
Weight [kg] 540 540 540

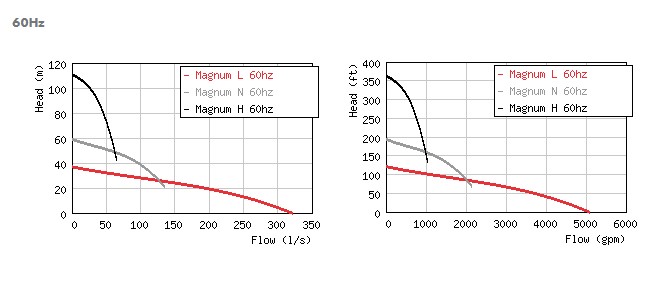

60 Hz N H L
Discharge connection 8″ 6″ 10″
Rated power P2 [kW] 67 67 67
Max. power consumption P1 [kW] 73 75 73
Shaft speed [r.p.m.] 1770 3540 1770
Rated current at 460V 107 A 101 A 107 A
Rated current at 575V 85 A 81 A 85 A
Solids passage [mm] 12 12 12
Height [mm] 1475 1475 1475
Diameter [mm] 750 750 750
Weight [kg] 540 540 540
