MATADOR N / H

Product code 8106.181; The Matador pump is a versatile drainage pump that shares all important features and benefits with the other models, resulting in the lowest cost per cubic meter pumped. The drainage range of pumps drain water, not your wallet! The revolutionary hydraulic design ensures high wear resistence and dramatically reduces performance drop due to long time wear. The Matador pump is available in two configurations;
Matador N (Normal head)
Matador H (High head)

Technical specifications Pump type: Electrical submersible Three-phase
Classification: IP 68
Max submersion: 20 meters
Cable: 20 meters, SUBCAB: ≥ 380V: 4G6mm2 < 380V: 4G10mm2
Discharge connection: N : 6″ – hose, ISO-G or NPT H : 4″ – hose, ISO-G or NPT
Limitations: pH 5-8
Max liquid temp: 40°C

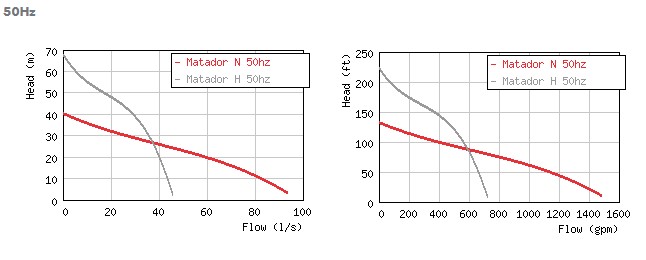

50 Hz N H
Discharge connection 6″ 4″
Rated power P2 [kW] 18 18
Max. power consumption P1 [kW] 20 20
Shaft speed [r.p.m.] 2905 2905
Rated current at 230V 56 A 56 A
Rated current at 400V 33 A 33 A
Rated current at 500V 26 A 26 A
Rated current at 1,000V 14 A 14 A
Solids passage [mm] 12 12
Height [mm] 954 954
Diameter [mm] 395 395
Weight [kg] 131 131

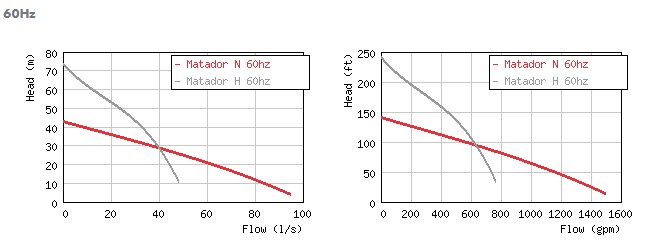

60 Hz N H
Discharge connection 6″ 4″
Rated power P2 [kW] 20 20
Max. power consumption P1 [kW] 22 22
Shaft speed [r.p.m.] 3495 3495
Rated current at 230V 61 A 61 A
Rated current at 460V 31 A 31 A
Rated current at 575V 25 A 25 A
Solids passage [mm] 12 12
Height [mm] 954 954
Diameter [mm] 395 395
Weight [kg] 131 131
