Designed for handling raw sewage and various wastewater treatments, the cutting mechanism shreds fibrous materials into small pieces to prevent from clogging.
| Technical Specifications Pump Type: | Electrical Submersible Pumps, One- phase, Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 2 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, One- phase Capacitor-Run, Three-phase D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Semi-Open Channel Cutter |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07RN-F, 6m (20′) or longer upon request. |
| Materials: | Pump Casing-Gray Iron, Impeller-Gray Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel |
| Guide Rail Systems: | GRL-02F(GOCUT 215)/GRL-03F(GOCUT 315); available upon request. |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 2″-Gocut215, 3″-Gocut315 | 2″-Gocut215, 3″-Gocut315 |
| Shaft Speed [r.p.m.] | 2850-Gocut215, 2850-Gocut315 | 3450-Gocut215, 3450-Gocut315 |
| Rated Output [KW] | 1.5-Gocut215, 1.5-Gocut315 | 1.5-Gocut215, 1.5-Gocut315 |
| Rated Head [m] | 8-Gocut215, 8-Gocut315 | 9-Gocut215, 8-Gocut315 |
| Rated Flow [L/s] | 5.8-Gocut215, 6.7-Gocut315 | 6-Gocut215, 7.2-Gocut315 |
| Max Head [m] | 16-Gocut215, 16-Gocut315 | 17-Gocut215, 16-Gocut315 |
| Max Flow [L/s] | 8.3-Gocut215, 10.8-Gocut315 | 8.3-Gocut215, 10-Gocut315 |
| Solids passage [mm] | 27-Gocut215, 27-Gocut315 | 27-Gocut215, 27-Gocut315 |
| Diameter [mm] | 301-Gocut215, 301-Gocut315 | 301-Gocut215, 301-Gocut315 |
| Height [mm] | 463-Gocut215, 463-Gocut315 | 463-Gocut215, 463-Gocut315 |
| Weight [kg] | 27-Gocut215, 27-Gocut315 | 27-Gocut215, 27-Gocut315 |

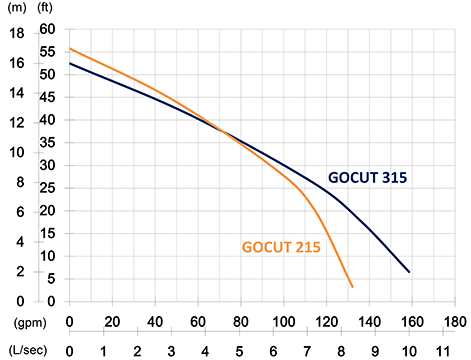

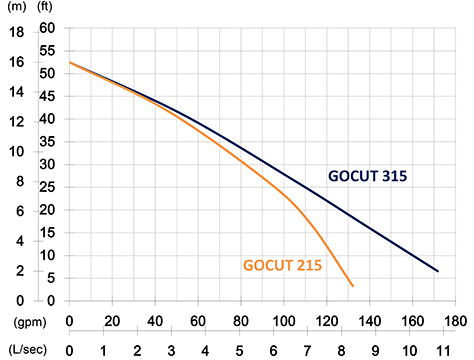

| 50HZ | 60HZ |
 |
 |
