Designed for handling raw sewage and various wastewater treatments, the cutting mechanism shreds fibrous materials into small pieces to prevent from clogging.
| Technical Specifications Pump Type: | Electrical Submersible Pumps Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 2 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Semi-Open Channel Cutter |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07RN-F, 10m (33′) or longer upon request. |
| Materials: | Pump Casing-Gray Iron, Impeller-Gray Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel |
| Guide Rail Systems: | GRF-03(GOCUT 337)/GRF-04(GOCUT 437); available upon request. |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 3″-Gocut337, 4″-Gocut437 | 3″-Gocut337, 4″-Gocut437 |
| Shaft Speed [r.p.m.] | 2850-Gocut337, 2850-Gocut437 | 3450-Gocut337, 3450-Gocut437 |
| Rated Output [KW] | 3.7-Gocut337, 3.7-Gocut437 | 3.7-Gocut337, 3.7-Gocut437 |
| Rated Head [m] | 13-Gocut337, 14-Gocut437 | 14-Gocut337, 13-Gocut437 |
| Rated Flow [L/s] | 10.8-Gocut337, 11.7-Gocut437 | 10.8-Gocut337, 10-Gocut437 |
| Max Head [m] | 20-Gocut337, 18-Gocut437 | 20-Gocut337, 20-Gocut437 |
| Max Flow [L/s] | 20-Gocut215, 21.7-Gocut315 | 20-Gocut215, 20-Gocut315 |
| Solids passage [mm] | 37-Gocut337, 37-Gocut437 | 37-Gocut337, 37-Gocut437 |
| Diameter [mm] | 482-Gocut337, 482-Gocut437 | 482-Gocut337, 482-Gocut437 |
| Height [mm] | 642-Gocut337, 642-Gocut437 | 642-Gocut337, 642-Gocut437 |
| Weight [kg] | 60-Gocut337, 60-Gocut437 | 60-Gocut337, 60-Gocut437 |

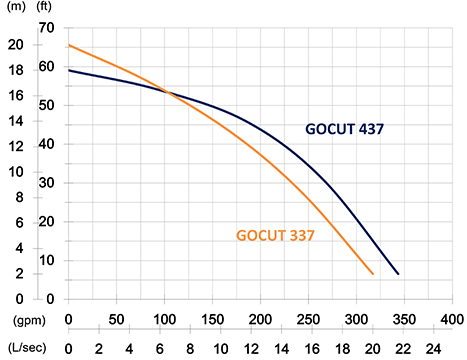

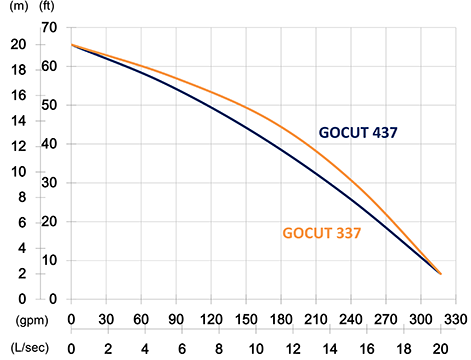

| 50HZ | 60HZ |
 |
 |
