Designed for handling raw sewage and various wastewater treatments, the cutting mechanism shreds fibrous materials into small pieces to prevent from clogging.
| Technical Specifications Pump Type: | Electrical Submersible Pumps One- phase, Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 2 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, One- phase Capacitor-Run, Three-phase D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Semi-Open Channel Cutter |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07RN-F, 6m (20′) or longer upon request. |
| Materials: | Pump Casing-Gray Iron, Impeller-Gray Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel |
| Guide Rail Systems: | GRL-02F available upon request |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge connection | 2″ | 2″ |
| Shaft Speed [r.p.m.] | 2850 | 3450 |
| Rated Output [KW] | 0.75 | 0.75 |
| Rated Head [m] | 8 | 8 |
| Rated Flow [L/s] | 3.3 | 3.3 |
| Max Head [m] | 10 | 10 |
| Max Flow [L/s] | 6.7 | 6.7 |
| Solids passage [mm] | 26 | 26 |
| Height [mm] | 434 | 434 |
| Diameter [mm] | 301 | 301 |
| Weight [kg] | 22 | 22 |

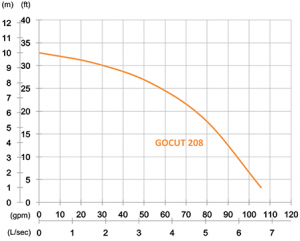

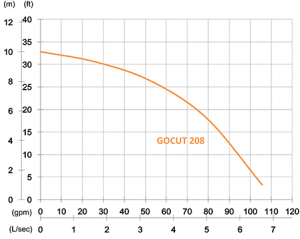

| 50HZ | 60HZ |
 |
 |
