Designed for passing 76mm diameter solids without clogging, GOMAX series pumps are suitable for commercial and industrial wastewater applications.
- Tel: (65) 6465 6672 / (65) 6397 0615
- Email: mar_aid@singnet.com.sg
Designed for passing 76mm diameter solids without clogging, GOMAX series pumps are suitable for commercial and industrial wastewater applications.
| Technical Specifications Pump Type: | Electrical Submersible Pumps Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 4 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Single Channel |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07RN-F, 10m (33′) or longer upon request. |
| Materials: | Pump Casing-Gray Iron, Impeller-Gray Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel, Mouth Ring-Copper Alloy |
| Guide Rail Systems: | GRN-03 available upon request. |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 3″-Gomax337, 4″-Gomax437 | 3″-Gomax337, 4″-Gomax437 |
| Shaft Speed [r.p.m.] | 1450-Gomax337, 1450-Gomax437 | 1750-Gomax337, 1750-Gomax437 |
| Rated Output [KW] | 3.7-Gomax337, 3.7-Gomax437 | 3.7-Gomax337, 3.7-Gomax437 |
| Rated Head [m] | 12.5-Gomax337, 11.1-Gomax437 | 12.5-Gomax337, 11.1-Gomax437 |
| Rated Flow [L/s] | 13.3-Gomax337, 20-Gomax437 | 13.3-Gomax337, 20-Gomax437 |
| Max Head [m] | 20.4-Gomax337, 19.6-Gomax437 | 20.4-Gomax337, 19.6-Gomax437 |
| Max Flow [L/s] | 25-Gomax337, 36.6-Gomax437 | 25-Gomax337, 36.6-Gomax437 |
| Solids passage [mm] | 76-Gomax337, 76-Gomax437 | 76-Gomax337, 76-Gomax437 |
| Diameter [mm] | 580-Gomax337, 589-Gomax437 | 580-Gomax337, 589-Gomax437 |
| Height [mm] | 750-Gomax337, 750-Gomax437 | 750-Gomax337, 750-Gomax437 |
| Weight [kg] | 94-Gomax337, 97-Gomax437 | 94-Gomax337, 97-Gomax437 |

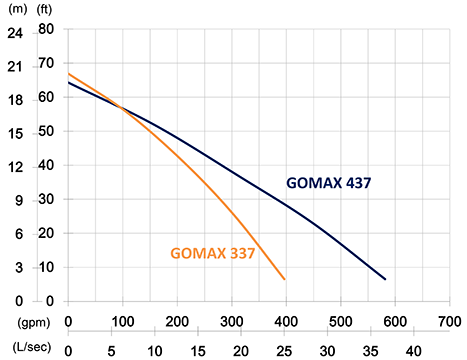

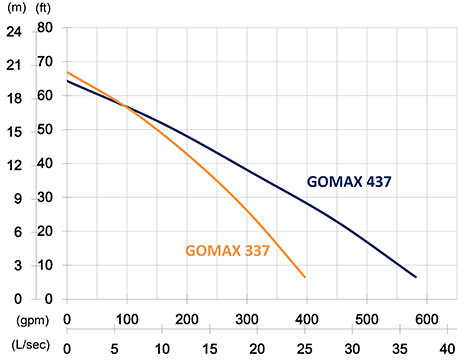

| 50HZ | 60HZ |
 |
 |
