Designed for passing 76mm diameter solids without clogging, GOMAX series pumps are suitable for commercial and industrial wastewater applications.
| Technical Specifications Pump Type: | Electrical Submersible Pumps, Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 4 Pole, Class F |
| Motor Protector : | Miniature Thermal Sensors, Star-Delta |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Single Channel |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07RN-F, 10m (33′) or longer upon request. |
| Materials: | Pump Casing-Gray Iron, Impeller-Gray Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel, Mouth Ring-Copper Alloy |
| Guide Rail Systems: | GRN-04 available upon request |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 4″-Gocut4220, 6″-Gocut6220 | 4″-Gocut4220, 6″-Gocut6220 |
| Shaft Speed [r.p.m.] | 1450-Gocut4220, 1450-Gocut6220 | 1750-Gocut4220, 1750-Gocut6220 |
| Rated Output [KW] | 22-Gocut4220, 22-Gocut6220 | 22-Gocut4220, 22-Gocut6220 |
| Rated Head [m] | 30-Gocut4220, 20-Gocut6220 | 30-Gocut4220, 20-Gocut6220 |
| Rated Flow [L/s] | 40-Gocut4220, 68.3-Gocut6220 | 40-Gocut4220, 68.3-Gocut6220 |
| Max Head [m] | 42-Gocut4220, 42-Gocut6220 | 42-Gocut4220, 42-Gocut6220 |
| Max Flow [L/s] | 75-Gocut4220, 98.3-Gocut6220 | 75-Gocut4220, 98.3-Gocut6220 |
| Solids passage [mm] | 76-Gocut4220, 76-Gocut6220 | 76-Gocut4220, 76-Gocut6220 |
| Diameter [mm] | 808-Gocut4220, 867-Gocut6220 | 808-Gocut4220, 867-Gocut6220 |
| Height [mm] | 1007-Gocut4220, 1007-Gocut6220 | 1007-Gocut4220, 1007-Gocut6220 |
| Weight [kg] | 256-Gocut4220, 262-Gocut6220 | 256-Gocut4220, 262-Gocut6220 |

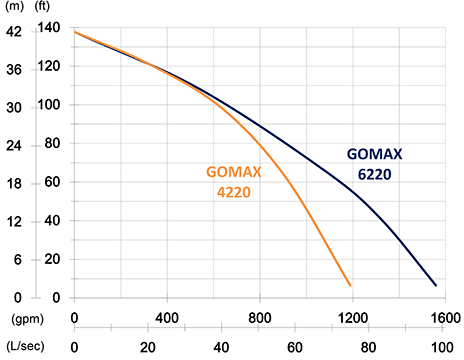

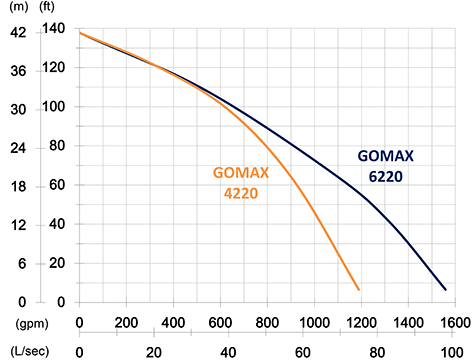

| 50HZ | 60HZ |
 |
 |
