GOSPIN series pumps offer top quality and high performance in various effluent pumping applications.
- Tel: (65) 6465 6672 / (65) 6397 0615
- Email: mar_aid@singnet.com.sg
GOSPIN series pumps offer top quality and high performance in various effluent pumping applications.
| Technical Specifications Pump Type: | Electrical Submersible Pumps Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 2 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Semi-Open |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07RN-F, 10m (33′) or longer upon request. |
| Materials: | Pump Casing-Gray Iron, Impeller-Gray Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel, Strainer-Stainless Steel |
| Guide Rail Systems: | GRF-03(GOSPIN 337)/GRF-04(GOSPIN 437); available upon request |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 3″-Gospin337, 4″-Gospin437 | 3″-Gospin337, 4″-Gospin437 |
| Shaft Speed [r.p.m.] | 2850-Gospin337, 2850-Gospin437 | 3450-Gospin337, 3450-Gospin437 |
| Rated Output [KW] | 3.7-Gospin337, 3.7-Gospin437 | 3.7-Gospin337, 3.7-Gospin437 |
| Rated Head [m] | 20-Gospin337, 20-Gospin437 | 20-Gospin337, 20-Gospin437 |
| Rated Flow [L/s] | 8.3-Gospin337, 10-Gospin437 | 8.3-Gospin337, 8.3-Gospin437 |
| Max Head [m] | 27-Gospin337, 25-Gospin437 | 30-Gospin337, 28-Gospin437 |
| Max Flow [L/s] | 15.8-Gospin337, 16.7-Gospin437 | 13.3-Gospin337, 15-Gospin437 |
| Solids passage [mm] | 9-Gospin337, 9-Gospin437 | 9-Gospin337, 9-Gospin437 |
| Diameter [mm] | 522-Gospin337, 522-Gospin437 | 522-Gospin337, 522-Gospin437 |
| Height [mm] | 613-Gospin337, 613-Gospin437 | 613-Gospin337, 613-Gospin437 |
| Weight [kg] | 56-Gospin337, 56-Gospin437 | 56-Gospin337, 56-Gospin437 |

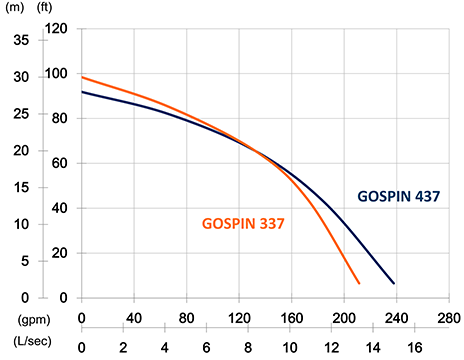

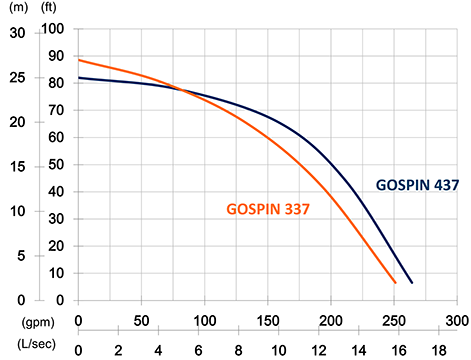

| 50HZ | 60HZ |
 |
 |
