GOSPIN 4

GOSPIN series pumps offer top quality and high performance in various effluent pumping applications.

Technical Specifications Pump Type: Electrical Submersible Pumps One- phase, Three-phase
Classification: IP 68
Motor Type: Induction Motor, 2 Pole, Class F
Motor Protector : Circle Thermal Protector, One- phase Capacitor-Run, Three-phase D.O.L
Lubricant: Food Grade (ISO VG32)
Shaft Seal Type: Double Mechanical Seal
Shaft Seal Desc: Silicon Carbide VS Ceramic / Carbon
Impeller Type: Semi-Open
Bearings: C3 Shielded ball bearings
Cable: PVC (CSA Certified) / H07RN-F, 6m (20′) or longer upon request.
Materials: Pump Casing-Gray Iron,
Impeller-Gray Iron, Motor Frame-Gray Iron,
Motor Shaft-Stainless Steel, Strainer-Stainless Steel
Guide Rail Systems: GRL-02F available upon request
Max liquid temp: 40˚C (104˚F)
Max. Sub. Depth: 20m (66″)
pH Range: pH 5 – pH 8



Specifications 50HZ 60HZ
Discharge connection 2″ 2″
Shaft Speed [r.p.m.] 2850 3450
Rated Output [KW] 0.4 0.4
Rated Head [m] 8 8
Rated Flow [L/s] 2.2 2.2
Max Head [m] 11 11
Max Flow [L/s] 5 5
Solids passage [mm] 5.5 5.5
Diameter [mm] 245 245
Height [mm] 376 376
Weight [kg] 16 16



50HZ 60HZ

Brochure

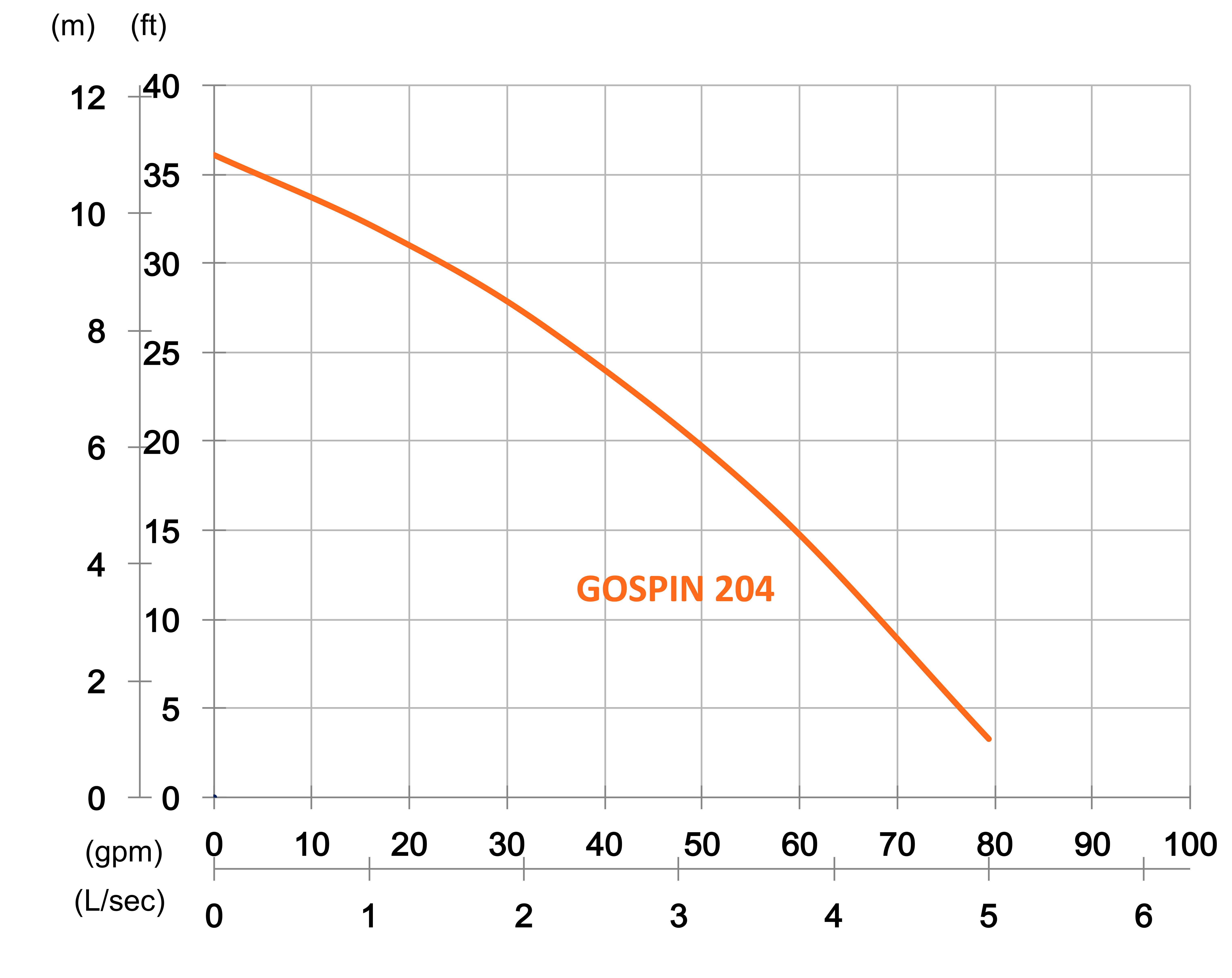

50HZ

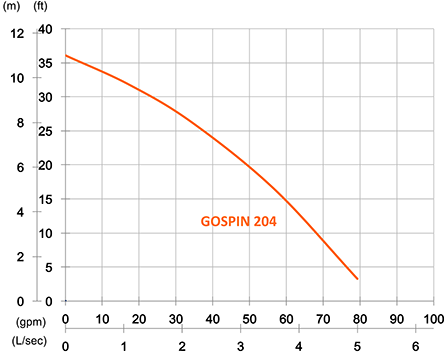

60HZ
