GOVOX series pumps feature a less impeller wear and longer pump life by a vortex flow that allows fibrous materials and solid matters to be pumped out without obstruction.

Technical Specifications Pump Type: Electrical Submersible Pumps, One- phase, Three-phase
Classification: IP 68
Motor Type: Induction Motor, 2 Pole, Class F
Motor Protector : Circle Thermal Protector, D.O.L
Lubricant: Food Grade (ISO VG32)
Shaft Seal Type: Double Mechanical Seal
Shaft Seal Desc: Silicon Carbide VS Ceramic / Carbon
Impeller Type: Vortex
Bearings: C3 Shielded ball bearings
Cable: PVC (CSA Certified) / H07RN-F, 10m (33′) or longer upon request.
Materials: Pump Casing-Ductile Iron,
Impeller-Gray Iron, Motor Frame-Gray Iron,
Motor Shaft-Stainless Steel
Max liquid temp: 40˚C (104˚F)
Max. Sub. Depth: 20m (66″)
pH Range: pH 5 – pH 8


Specifications 50HZ 60HZ
Discharge Outlet 4″ 4″
Shaft Speed [r.p.m.] 2850 3450
Rated Output [KW] 7.5 7.5
Rated Head [m] 20 20
Rated Flow [L/s] 12.5 12.5
Max Head [m] 31 31
Max Flow [L/s] 28.3 28.3
Solids passage [mm] 55 55
Diameter [mm] 389 389
Height [mm] 754 754
Weight [kg] 67 67

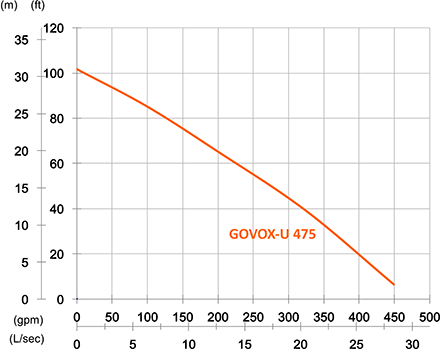

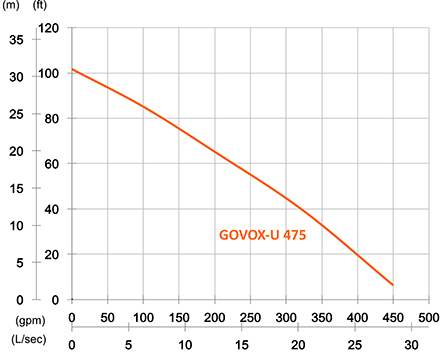

50HZ 60HZ
