MAJOR N / H

Product code 8104.181;

The Major pump is one of the more popular models in the drainage range, and it shares all important features and benefits with the other models, resulting in the lowest cost per cubic meter pumped. The drainage range of pumps drain water, not your wallet! The revolutionary hydraulic design ensures high wear resistence and dramatically reduces performance drop due to long time wear. The Major pump is available in two configurations;

Major N (Normal head)
Major H (High head)

Technical specifications Pump type: Electrical submersible Three-phase
Classification: IP 68
Max submersion: 20 m
Cable: 20 m, SUBCAB: 3-phase: 4G2.5mm2
Discharge connection: N : 4″ – hose, ISO-G or NPT H : 3″ – hose, ISO-G or NPT
Limitations: pH 5-8
Max liquid temp: 40°C

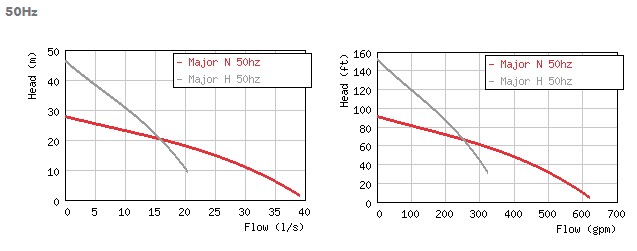

50 Hz N H
Discharge connection 4″ 3″
Rated power P2 [kW] 5.6 5.6
Max. power consumption P1 [kW] 6.6 6.6
Shaft speed [r.p.m.] 2895 2895
Rated current at 230V 19 A 19 A
Rated current at 400V 11 A 11 A
Rated current at 500V 8.7 A 8.7 A
Rated current at 1,000V 4.3 A 4.3 A
Solids passage [mm] 10 10
Height [mm] 768 768
Diameter [mm] 286 286
Weight [kg] 50 50

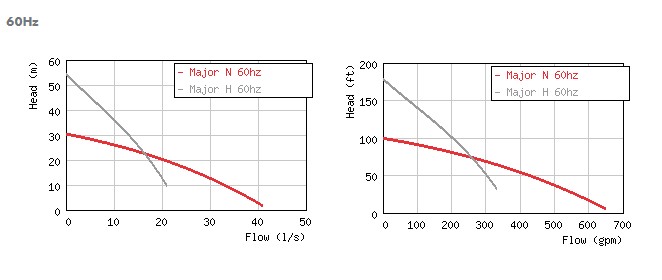

60 Hz N H
Discharge connection 4″ 3″
Rated power P2 [kW] 6.6 6.6
Max. power consumption P1 [kW] 7.7 7.7
Shaft speed [r.p.m.] 3470 3470
Rated current at 230V 22 A 22 A
Rated current at 400V 11 A 11 A
Rated current at 500V 8.7 A 8.7 A
Rated current at 1,000V
Solids passage [mm] 10 10
Height [mm] 768 768
Diameter [mm] 286 286
Weight [kg] 50 50
