Product code 8117.390;
With its impressive allowed pH range, from 2 up to 11, it is hard to find an application that can’t be handled by the Inox pumps. The modular design drives service cost down and at the same time offers the flexibility to change from a Normal pressure pump (N), to a High pressure pump (H). All materials in contact with the liquid are made out of AISI 316 stainless steel or better.
| Technical specifications Pump type: | Electrical Submersible Three-phase |
| Classification: | IP 68 |
| Max submersion: | 20 meters |
| Cable: | 20 meters, SUBCAB: 230V: 4G6mm2 ≥380V: 4G2.5mm2 3-phase: 4G2.5mm2 |
| Discharge connection: | N : 4″ – hose, ISO-G or NPT H : 3″ – hose, ISO-G or NPT |
| Limitations: | ph 2-11 |
| Max liquid temp: | 40°C |

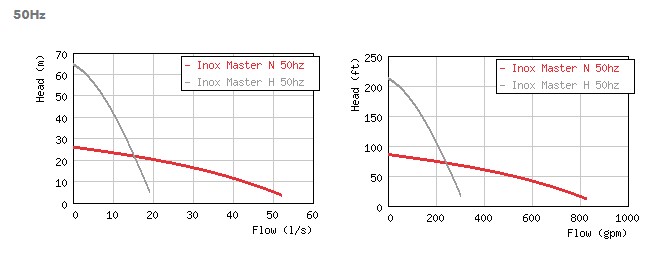

| 50 HZ | N | H |
| Discharge connection | 4″ | 3″ |
| Rated power P2 [KW] | 8.0 | 8.0 |
| Max. power consumption P1 [KW] | 9.2 | 9.2 |
| Shaft speed [r.p.m.] | 2855 | 2855 |
| Rated current at 400V | 15 A | 15 A |
| Rated current at 500V | 12 A | 12 A |
| Rated current 3 | – | – |
| Solids passage [mm] | 8.5 | 8.5 |
| Height [mm] | 720 | 720 |
| Width [mm] | 333 | 333 |
| Weight [kg] | 77 | 81 |

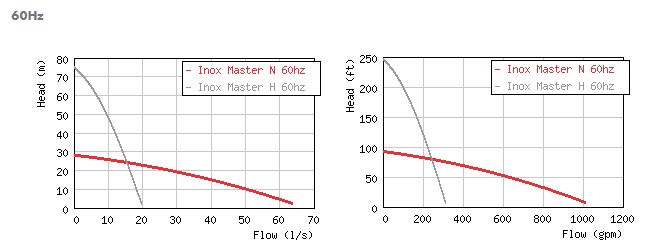

| 60 HZ | N | H |
| Discharge connection | 4″ | 3″ |
| Rated power P2 [KW] | 9.7 | 9.7 |
| Max. power consumption P1 [KW] | 11 | 11 |
| Shaft speed [r.p.m.] | 3455 | 3455 |
| Rated current at 230V | 30 A | 30 A |
| Rated current at 460V | 15 A | 15 A |
| Rated current at 575V | 12 A | 12 A |
| Solids passage [mm] | 8.5 | 8.5 |
| Height [mm] | 720 | 720 |
| Width [mm] | 333 | 333 |
| Weight [kg] | 77 | 81 |
