MASTER N / H / SH

Product code 8105.182;

The Master pump is a drainage pump with a high performance-weight ratio, and it shares all important features and benefits with the other models, resulting in the lowest cost per cubic meter pumped. The drainage range of pumps drain water, not your wallet! The revolutionary hydraulic design ensures high wear resistence and dramatically reduces performance drop due to long time wear. The Master pump is available in three configurations;

Master N (Normal head)
Master H (High head)
Master SH (Super High head)

Technical specifications Pump type: Electrical submersible Three-phase
Classification: IP 68
Max submersion: 20 meters
Cable: 20 meters, SUBCAB: 3-phase: 4G4mm2
Discharge connection: N: 6″ – hose, ISO-G or NPT H: 4″ – hose, ISO-G or NPT SH: 3″ – hose, ISO-G or NPT
Limitations: pH 5-8
Max liquid temp: 40°C

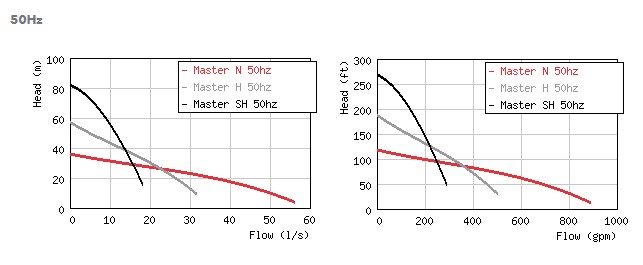

50 Hz N H SH
Discharge connection 6″ 4″ 3″
Rated power P2 [kW] 10 10 10
Max. power consumption P1 [kW] 11.7 11.7 11.7
Shaft speed [r.p.m.] 2855 2855 2855
Rated current at 230V 33 A 33 A 33 A
Rated current at 400V 19 A 19 A 19 A
Rated current at 500V 15 A 15 A 15 A
Rated current at 1,000V 8 A 8 A 8 A
Solids passage [mm] 10 10 10
Height [mm] 832 832 887
Diameter [mm] 346 346 346
Weight [kg] 80 80 98

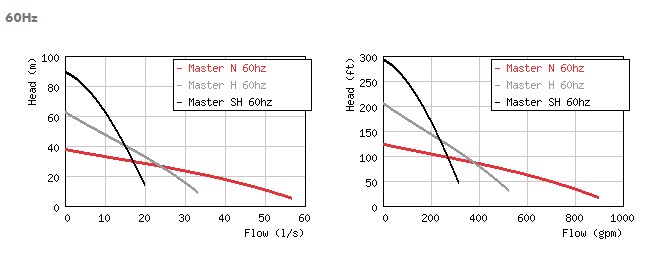

60 Hz N H SH
Discharge connection 6″ 4″ 3″
Rated power P2 [kW] 11.2 11.2 11.2
Max. power consumption P1 [kW] 12.8 12.8 12.8
Shaft speed [r.p.m.] 3465 3465 3456
Rated current at 230V 35 A 35 A 35 A
Rated current at 460V 18 A 18 A 18 A
Rated current at 575V 14 A 14 A 14 A
Solids passage [mm] 10 10 10
Height [mm] 832 832 887
Diameter [mm] 346 346 346
Weight [kg] 80 80 98
