MEGA N / H

Product code 8124.400; The Mega pump is ideal for operation in deep excavations where very high head pumping is needed, such as in open pit mines as well as in underground mines. Other typical applications include quarries and tunnelling projects.

Mega is designed to handle pH levels from 6 to 13; zinc anodes are available for extra protection. As this pump is made of cast iron, it is also the right choice for heavy-duty applications in salt water. Grindex reliable pumps are designed for long time operation and are easy to install. The Mega pump is available in two configurations;
Mega N (Normal head)
Mega H (High head)

Technical specifications Pump type: Electrical submersible 3-phase
Classification: Class IP 68
Max submersion: 75m
Cable: SUBCAB
Discharge connection: N: 6″ SMS/DIN/BS/ANSI H: 4″ SMS/DIN/BS/ANSI
Limitations: pH of the liquid: 6-13
Max liquid temp: 40°C

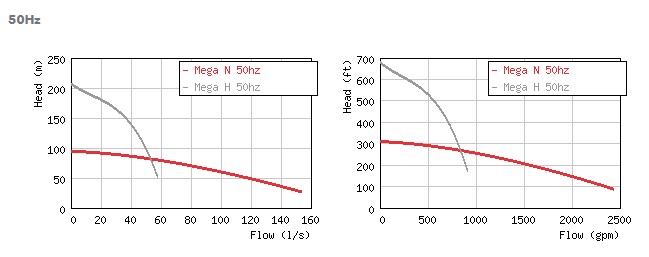

50 Hz N H
Discharge connection 6″ 4″
Rated power P2 [kW] 90 90
Max. power consumption P1 [kW] 95 95
Shaft speed [r.p.m.] 2965 2965
Rated current at 400V 148 A 148 A
Rated current at 500V 117 A 117 A
Rated current at 1,000V 60 A 60 A
Solids passage [mm] 10 10
Height [mm] 1180 1245
Diameter [mm] 610 610
Weight [kg] 900 985

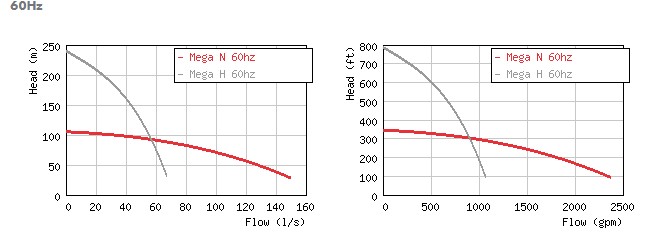

60 Hz N H
Discharge connection 6″ 4″
Rated power P2 [kW] 104 104
Max. power consumption P1 [kW] 110 110
Shaft speed [r.p.m.] 3560 3560
Rated current at 380V 178 A 178 A
Rated current at 460V 148 A 148 A
Rated current at 575V 118 A 118 A
Solids passage [mm] 10 10
Height [mm] 1180 1180
Diameter [mm] 610 610
Weight [kg] 900 985
