Minex

Product code 8101.160 and 8101.172;

The Minex pump is the smallest model in the drainage range, but it shares all important features and benefits with the larger models, resulting in the lowest cost per cubic meter pumped. The drainage range of pumps drain water, not your wallet! The revolutionary hydraulic design ensures high wear resistence and dramatically reduces performance drop due to long time wear. The Minex pump is available in two configurations;
Minex 1-phase (8101.160)
Minex 3-phase (8101.172)

The Minex pump is available in two configurations;
Minex 1-phase (8101.160)
Minex 3-phase (8101.172)

Technical specifications Pump type: Electrical submersible One-phase and Three-phase
Classification: IP 68
Max submersion: 20 meters
Cable: 20 m, SUBCAB: 1-ph: 3G1.5mm2 3-ph: 4G1.5mm2
Discharge connection: Hose, ISO-G or NPT
Limitations: pH 5-8
Max liquid temp: 40°C

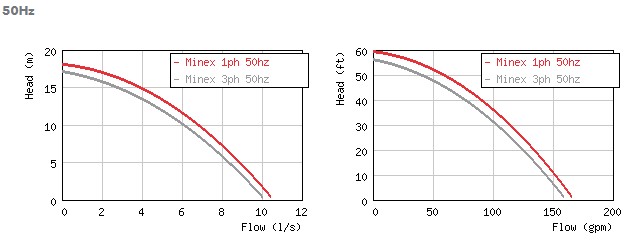

50 Hz 1-ph 3-ph
Discharge connection 2″ 2″
Rated power P2 [kW] 1.4 1.2
Max. power consumption P1 [kW] 1.8 1.6
Shaft speed [r.p.m.] 2870 2740
Rated current at 115V
Rated current at 230V 7.8 A 4.7 A
Rated current at 400V 2.6 A
Solids passage [mm] 7.5 7.5
Height [mm] 646 616
Diameter [mm] 200 200
Weight [kg] 25 21.5

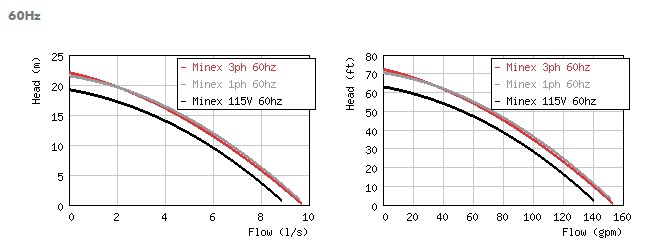

60 Hz 1-ph
(115V)
1-ph
(230V)
3-ph
(460V/575V
Discharge connection 2″ 2″ 2″
Rated power P2 [kW] 1.43 1.5 1.8
Max. power consumption P1 [kW] 1.7 1.8 1.8
Shaft speed [r.p.m.] 3415 3460 3355
Rated current at 115V 15 A
Rated current at 230V 8.2 A 5.2 A
Rated current 3 2.6 A /2.1 A
Solids passage [mm] 7.5 7.5 7.5
Height [mm] 616 646 616
Diameter [mm] 200 200 200
Weight [kg] 21.5 25 21.5
