MINOR N / H

Product code 8103.181;

The Minor pump is one of the more popular models in the drainage range, and it shares all important features and benefits with the other models, resulting in the lowest cost per cubic meter pumped. The drainage range of pumps drain water, not your wallet! The revolutionary hydraulic design ensures high wear resistance and dramatically reduces performance drop due to long time wear. The Minor pump is available in two configurations;

Minor N (Normal head)
Minor H (High head)

Technical specifications Pump type: Electrical Submersible Three-phase
Classification: IP 68
Max submersion: 20 meters
Cable: 20 meters, SUBCAB: 3-phase: 4G2.5mm2
Discharge connection: N : 4″ – hose, ISO-G or NPT H : 3″ – hose, ISO-G or NPT
Limitations: ph 5-8
Max liquid temp: 40°C

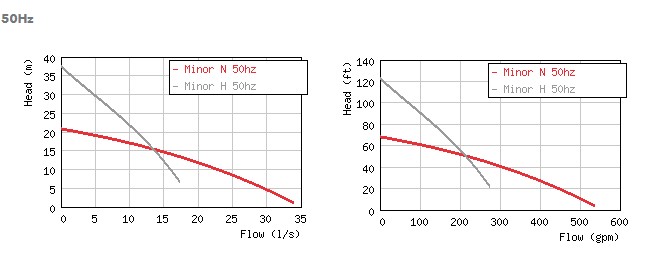

50 HZ N H
Discharge connection 4″ 3″
Rated power P2 [KW] 3.7 3.7
Max. power consumption P1 [KW] 4.4 4.4
Shaft speed [r.p.m.] 2885 2885
Rated current at 230V 13 A 13 A
Rated current at 400V 7.3 A 7.3 A
Rated current at 500V 5.4 A 5.4 A
Rated current at 1,000V 2.9 A 2.9 A
Solids passage [mm] 10 10
Height [mm] 768 768
Diameter[mm] 286 286
Weight [kg] 50 50

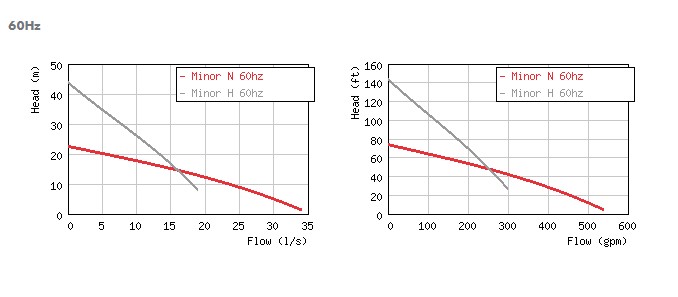

60 HZ N H
Discharge connection 4″ 3″
Rated power P2 [KW] 4.4 4.4
Max. power consumption P1 [KW] 5.2 5.2
Shaft speed [r.p.m.] 3480 3480
Rated current at 230V 15 A 15 A
Rated current at 460V 7.1 A 7.1 A
Rated current at 575V 5.5 A 5.5 A
Rated current 4
Solids passage [mm] 10 10
Height [mm] 768 768
Diameter [mm] 286 286
Weight [kg] 50 50
