Rugged, reliable and cost effective, the STORMY-P series pumps come complete with patented high chrome impellers, agitators, and wear plates to withstand tough slurry transportation.
| Technical Specifications Pump Type: | Electrical Submersible Pumps, Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 4 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Opened |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07BQ-F, 10m (33′) or longer upon request. |
| Materials: | Pump Casing-Ductile Iron, Impeller-Chromium Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel, Wear Plate-Chromium Iron, Agitator-Chromium Iron |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 3″-Stormy337P, 4″-Stormy437P | 3″-Stormy337P, 4″-Stormy437P |
| Shaft Speed [r.p.m.] | 1450-Stormy337P, 1450-Stormy437P | 3450-Stormy337P, 3450-Stormy437P |
| Rated Output [KW] | 3.7-Stormy337P, 3.7-Stormy437P | 3.7-Stormy337P, 3.7-Stormy437P |
| Rated Head [m] | 10-Stormy337P, 10-Stormy437P | 10-Stormy337P, 10-Stormy437P |
| Rated Flow [L/s] | 11.7-Stormy337P, 16.7-Stormy437P | 11.7-Stormy337P, 16.7-Stormy437P |
| Max Head [m] | 15-Stormy337P, 14-Stormy437P | 15-Stormy337P, 14-Stormy437P |
| Max Flow [L/s] | 21.7-Stormy337P, 30-Stormy437P | 21.7-Stormy337P, 30-Stormy437P |
| Solids passage [mm] | 25-Stormy337P, 25-Stormy437P | 25-Stormy337P, 25-Stormy437P |
| Diameter [mm] | 385-Stormy337P, 385-Stormy437P | 385-Stormy337P, 385-Stormy437P |
| Height [mm] | 762-Stormy337P, 783-Stormy437P | 762-Stormy337P, 783-Stormy437P |
| Weight [kg] | 110-Stormy337P, 110-Stormy437P | 110-Stormy337P, 110-Stormy437P |

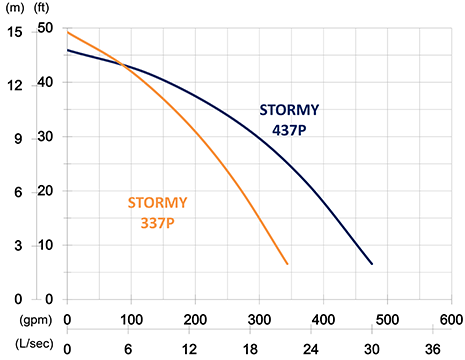

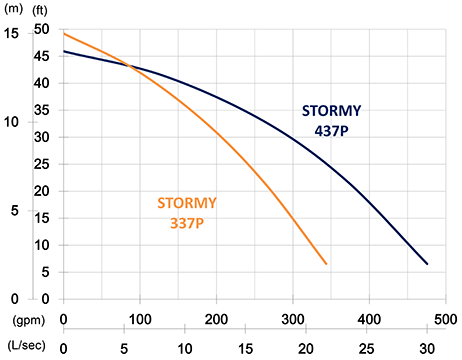

| 50HZ | 60HZ |
 |
 |
