With a compact, slim design and the patented ACrS technology, these wear-resistant, portable dewatering pumps provide reliable and economical solutions.
- Tel: (65) 6465 6672 / (65) 6397 0615
- Email: mar_aid@singnet.com.sg
With a compact, slim design and the patented ACrS technology, these wear-resistant, portable dewatering pumps provide reliable and economical solutions.
| Technical Specifications Pump Type: | Electrical Submersible Pumps,Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 2 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Opened |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07BQ-F, 10m (33′) or longer upon request. |
| Materials: | Pump Casing-Gray Iron, Impeller-Chromium Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel, Strainer-Stainless Steel |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 4″-Tank4220, 6″-Tank6220, 8″-Tank8220 | 4″-Tank4220, 6″-Tank6220, 8″-Tank8220 |
| Shaft Speed [r.p.m.] | 2850-Tank4220, 2850-Tank6220, 2850-Tank8220 | 3450-Tank4220, 3450-Tank6220, 3450-Tank8220 |
| Rated Output [KW] | 22-Tank4220, 22-Tank6220, 22-Tank8220 | 22-Tank4220, 22-Tank6220, 22-Tank8220 |
| Rated Head [m] | 55-Tank4220, 35-Tank6220, 20-Tank8220 | 55-Tank4220, 35-Tank6220, 26-Tank8220 |
| Rated Flow [L/s] | 16.7-Tank4220, 33.3-Tank6220, 48.3-Tank8220 | 16.7-Tank4220, 33.3-Tank6220, 48.3-Tank8220 |
| Max Head [m] | 70-Tank4220, 50-Tank6220, 30-Tank8220 | 70-Tank4220, 50-Tank6220, 30-Tank8220 |
| Max Flow [L/s] | 33.3-Tank4220, 53.3-Tank6220, 86.6-Tank8220 | 33.3-Tank4220, 53.3-Tank6220, 86.7-Tank8220 |
| Solids passage [mm] | 15-Tank4220, 20-Tank6220, 20-Tank8220 | 15-Tank4220, 20-Tank6220, 20-Tank8220 |
| Diameter [mm] | 424-Tank4220, 424-Tank6220, 424-Tank8220 | 424-Tank4220, 424-Tank6220, 424-Tank8220 |
| Height [mm] | 1085-Tank4220, 1099-Tank6220, 1154-Tank8220 | 1085-Tank4220, 1099-Tank6220, 1154-Tank8220 |
| Weight [kg] | 256-Tank4220, 259-Tank6220, 264-Tank8220 | 256-Tank4220, 259-Tank6220, 264-Tank8220 |

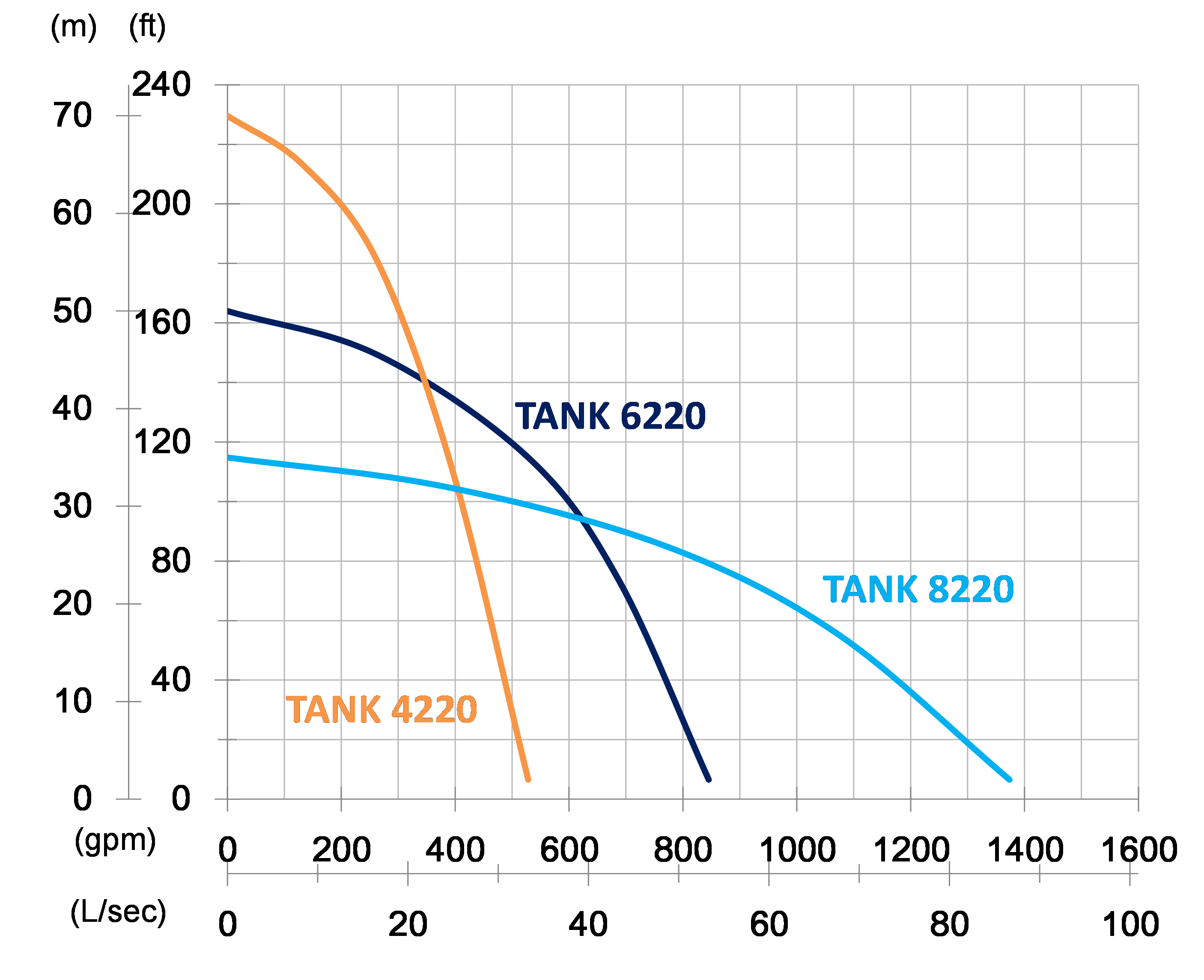

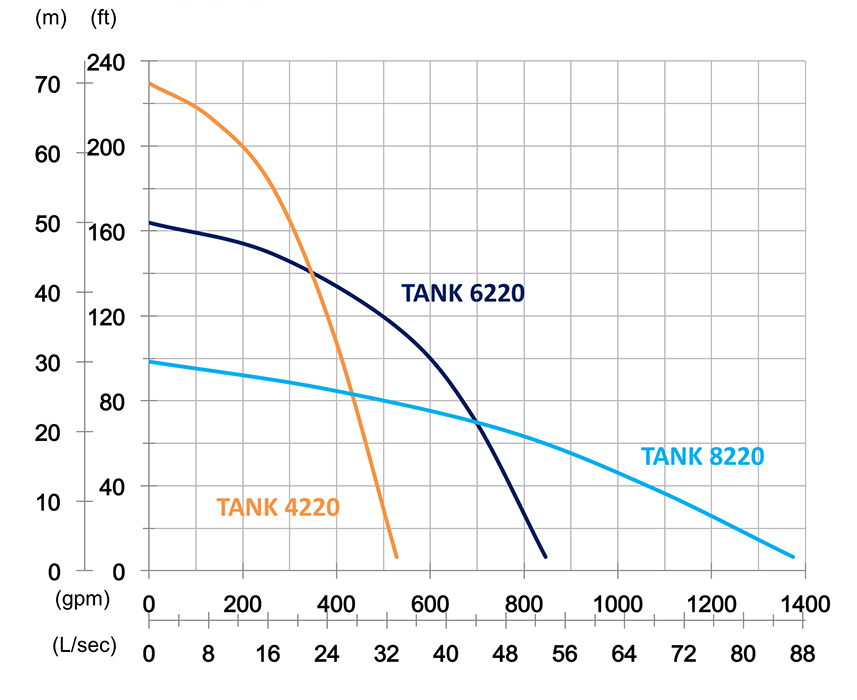

| 50HZ | 60HZ |
 |
 |
