With a compact, slim design and the patented ACrS technology, these wear-resistant, portable dewatering pumps provide reliable and economical solutions.
- Tel: (65) 6465 6672 / (65) 6397 0615
- Email: mar_aid@singnet.com.sg
With a compact, slim design and the patented ACrS technology, these wear-resistant, portable dewatering pumps provide reliable and economical solutions.
| Technical Specifications Pump Type: | Electrical Submersible Pumps,Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 2 Pole, Class F |
| Motor Protector : | Star-Delta Miniature Thermal Sensors, Star-Delta |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Closed |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07BQ-F, 10m (33′) or longer upon request. |
| Materials: | Pump Casing-Ductile Iron, Impeller-Chromium Iron, Motor Frame-Gray Iron, Motor Shaft-Stainless Steel, Outer Case-Carbon Steel, Strainer-Carbon Steel |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge Outlet | 6″-Tank6450, 8″-Tank8450 | 6″-Tank6450, 8″-Tank8450 |
| Shaft Speed [r.p.m.] | 2850-Tank6450, 2850-Tank8450 | 3450-Tank6450, 3450-Tank8450 |
| Rated Output [KW] | 45-Tank6450, 45-Tank8450 | 45-Tank6450, 45-Tank8450 |
| Rated Head [m] | 68-Tank6450, 35-Tank8450 | 68-Tank6450, 35-Tank8450 |
| Rated Flow [L/s] | 41.6-Tank6450, 75-Tank8450 | 41.7-Tank6450, 75-Tank8450 |
| Max Head [m] | 80-Tank6450, 55-Tank8450 | 83-Tank6450, 60-Tank8450 |
| Max Flow [L/s] | 63.3-Tank6450, 96.6-Tank8450 | 60-Tank6450, 93.3-Tank8450 |
| Solids passage [mm] | 10-Tank6450, 20-Tank8450 | 10-Tank6450, 20-Tank8450 |
| Diameter [mm] | 532-Tank6450, 532-Tank8450 | 532-Tank6450, 532-Tank8450 |
| Height [mm] | 1294-Tank6450, 1256-Tank8450 | 1294-Tank6450, 1256-Tank8450 |
| Weight [kg] | 530-Tank6450, 530-Tank8450 | 530-Tank6450, 530-Tank8450 |

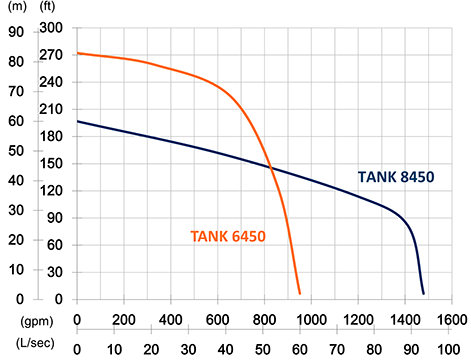

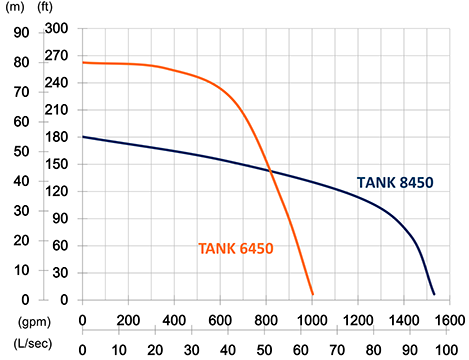

| 50HZ | 60HZ |
 |
 |
