X-SMART series pumps are designed for handling clean water or screened wastewater. The high quality and innovative design has proven to be highly reliable and durable for trouble-free performance.

Technical Specifications Pump Type: Electrical Submersible Pumps, One- phase, Three-phase
Classification: IP 68
Motor Type: Induction Motor, 2 Pole, Class F
Motor Protector : Circle Thermal Protector, One- phase Capacitor-Run, Three-phase D.O.L
Lubricant: Food Grade (ISO VG32)
Shaft Seal Type: Double Mechanical Seal
Shaft Seal Desc: Silicon Carbide VS Ceramic / Carbon
Impeller Type: Closed
Bearings: C3 Shielded ball bearings
Cable: PVC (CSA Certified) / H07RN-F, 10m (33′) or longer upon request.
Materials: Pump Casing-Stainless Steel,
Impeller-Stainless Steel, Motor Frame-Stainless Steel,
Motor Shaft-Stainless Steel,
Strainer-Stainless Steel
Max liquid temp: 40˚C (104˚F)
Max. Sub. Depth: 20m (66″)
pH Range: pH 5 – pH 8


Specifications 50HZ 60HZ
Discharge connection 2″-XSmart215, 3″-XSmart315 2″-XSmart215, 3″-XSmart315
Shaft Speed [r.p.m.] 2850-XSmart215, 2850-XSmart315 3450-XSmart215, 3450-XSmart315
Rated Output [KW] 1.5-XSmart215, 1.5-XSmart315 1.5-XSmart215, 1.5-XSmart315
Rated Head [m] 13.1-XSmart215, 9.6-XSmart315 13.5-XSmart215, 8.5-XSmart315
Rated Flow [L/s] 5-XSmart215, 8.3-XSmart315 5-XSmart215, 8.3-XSmart315
Max Head [m] 18.3-XSmart215, 18.2-XSmart315 19.5-XSmart215, 20.4-XSmart315
Max Flow [L/s] 9.5-XSmart215, 12.2-XSmart315 8.7-XSmart215, 10.7-XSmart315
Solids passage [mm] 7-XSmart215, 7-XSmart315 7-XSmart215, 7-XSmart315
Diameter [mm] 186-XSmart215, 186-XSmart315 186-XSmart215, 186-XSmart315
Height [mm] 449-XSmart215, 449-XSmart315 449-XSmart215, 449-XSmart315
Weight [kg] 19-XSmart215, 19-XSmart315 19-XSmart215, 19-XSmart315

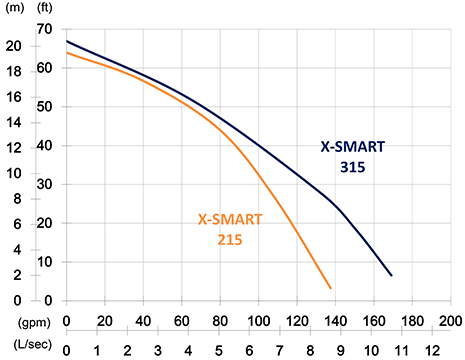

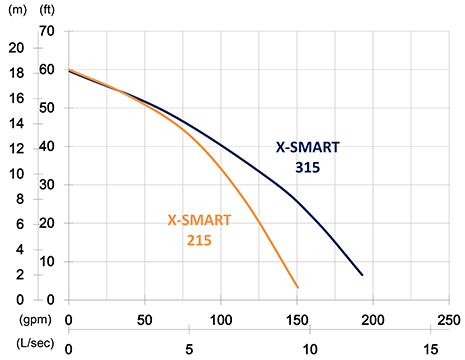

50HZ 60HZ
