X-SMART series pumps are designed for handling clean water or screened wastewater. The high quality and innovative design has proven to be highly reliable and durable for trouble-free performance.
| Technical Specifications Pump Type: | Electrical Submersible Pumps, One- phase, Three-phase |
| Classification: | IP 68 |
| Motor Type: | Induction Motor, 2 Pole, Class F |
| Motor Protector : | Circle Thermal Protector, One- phase Capacitor-Run, Three-phase D.O.L |
| Lubricant: | Food Grade (ISO VG32) |
| Shaft Seal Type: | Double Mechanical Seal |
| Shaft Seal Desc: | Silicon Carbide VS Ceramic / Carbon |
| Impeller Type: | Opened |
| Bearings: | C3 Shielded ball bearings |
| Cable: | PVC (CSA Certified) / H07RN-F, 6m (20′) or longer upon request. |
| Materials: | Pump Casing-Stainless Steel, Impeller-Stainless Steel, Motor Frame-Stainless Steel, Motor Shaft-Stainless Steel, Strainer-Stainless Steel |
| Max liquid temp: | 40˚C (104˚F) |
| Max. Sub. Depth: | 20m (66″) |
| pH Range: | pH 5 – pH 8 |
| Specifications | 50HZ | 60HZ |
| Discharge connection | 2″ | 2″ |
| Shaft Speed [r.p.m.] | 2850 | 3450 |
| Rated Output [KW] | 0.4 | 0.4 |
| Rated Head [m] | 7 | 7 |
| Rated Flow [L/s] | 2.3 | 2.3 |
| Max Head [m] | 10 | 10 |
| Max Flow [L/s] | 4 | 4 |
| Solids passage [mm] | 5.5 | 5.5 |
| Diameter [mm] | 180 | 180 |
| Height [mm] | 333 | 333 |
| Weight [kg] | 13 | 13 |

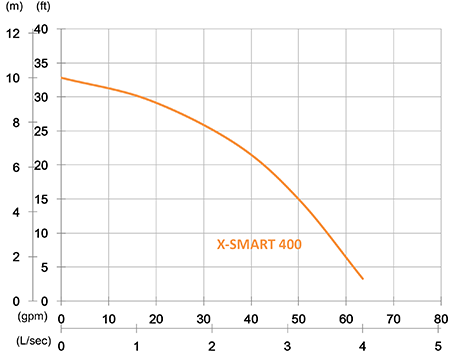

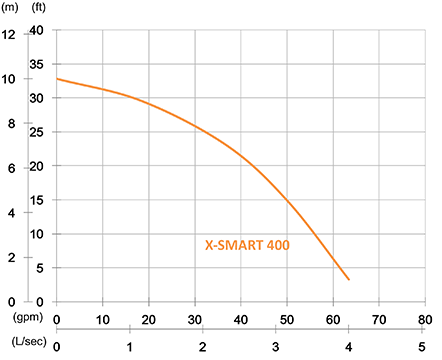

| 50HZ | 60HZ |
 |
 |
